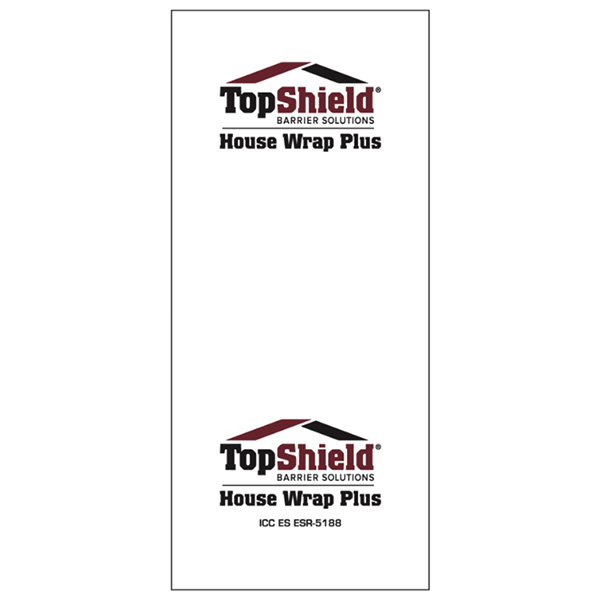

TopShield® HouseWrap-PLUS
Product Line: TopShield®
Product Description: TopShield® HouseWrap-PLUS is manufactured from a polypropylene woven
fabric with a polypropylene coating that contains UV inhibitors.
Product Description
Specifications
Documentation
Product Description
TopShield® HouseWrap-PLUS is a tear resistant woven and coated polypropylene weather resistant barrier that provides air and moisture protection. TopShield® HouseWrap-PLUS is manufactured with great translucency for easier on stud installation without the need for nailing marks and offers tear strength that will withstand the rigors of the job site and weather elements.
Benefits & Features
- Provides protection from water infiltration but breathes allowing water vapor to escape through micro perforations offering protection to the interior wall cavity.
- Custom printing for as little as one pallet.
- UV resistant and can be left exposed for up to 6 months.
- Tear resistant reduces jobsite waste and blow-offs.
- Meets and exceeds all current building codes for water-resistive barriers as well as air barriers.
Specifications
| Product Specifications: | Test Method: | ||
| Composition: | Woven Polypropylene | ||
| Weight per Roll: | 14.4 lbs. / MSF | ||
| Thickness: | 6.5 mils. | ||
| Tensile Strength: | MD | 60 | ASTM D-828 |
| CD | 44 | ||
| Tear Strength: | MD | 34 | ASTM D-4533 |
| CD | 30 | ||
| Water Resistance: | Pass | ASTM D-779 | |
| MVTR / Perms: | 9 Perms | ASTM E-96 | |
| Fire Rating: | Class A | ASTM E-84 | |
| Roll Size: | Rolls Per Pallet: |
| 9’ x 100’ | 50 |
| 9’ x 150’ | 45 |
| 9’ x 195’ | 40 |
| 10’ x 100’ | 50 |
| 10’ x 150’ | 45 |
| 10’ x 195’ | 40 |
| 54" x 100’ | 100 |
| 54" x 150’ | 90 |
| 54" x 195’ | 80 |
| 36" x 100’ | 150 |
| 36" x 150’ | 135 |
