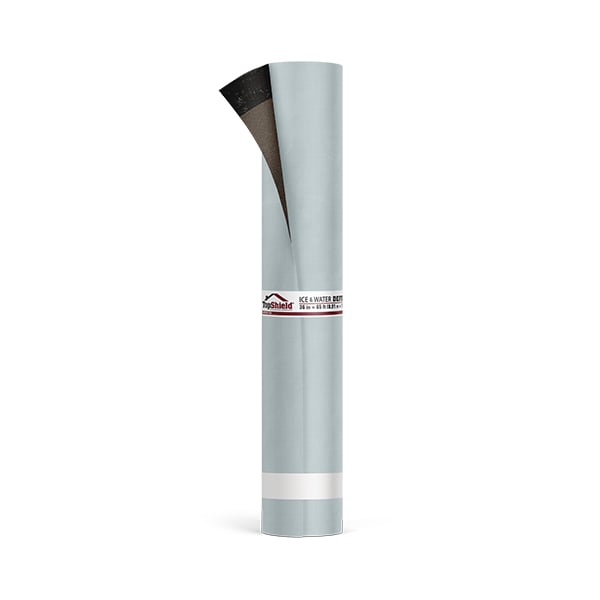

Defender Ice & Water
Product Line: TopShield®
Product Description: Roof underlay adhesive membrane consisting of a reinforced glass mat and sand covered surface which is slip resistant.
Product Description
Specifications
Documentation
Product Description
TopShield® Defender is a 1.35 mm self-adhesive waterproofing membrane made of elastomeric SBS bitumen with a glass mat reinforcement. The surface is sanded and the sub surface layer is composed of a silicone film easily detachable in two parts.
Benefits & Features
- Excellent resistance to temperature variations
- Designed with a glass mat reinforcement
- Excellent dimensional stability
- Can be used on plywood, asphaltic panel and OSB substrates
- Easy Installation
Specifications
For Use On
- Plywood, OSB, or asphaltic panel substrates at eaves, valleys, and rake edges
| PHYSICAL INFORMATION | |
| Item Code: |
TOPTSLB1236 TOP00862 |
| Roll Length: | 65' |
| Roll Thickness: | 1.35mm (53 mils) |
| Roll Width: | 36" |
| Weight: | 60 lb |
| Tensile Strength, MD/XD: | 10.7 / 8.1 kN/m (61 / 46 lbf/in) |
| Ultimate elongation, MD/XD: | 16 / 14% |
| Tear Resistance: | 400 / 353 N (90 / 79 lbf) |
| Static Puncture: | 140 N (31 lbf) |
| Adhesion to Plywood, 24 °C (75.2 °F): | 211 N/m (14.5 lbf/pi) |
| Thermal Stability, 14 days @ 70 °C (158 °F): | <2.5 mm (<0.1 in) |
| Low Temperature Flexibility: | Pass at -29 °C (-20 °F) |
| Nail Sealability: | Pass |
Applicable Standards & Approvals
- ASTM D1970
- ASTM D5602
- Miami-Dade County Approved (22-0124.06)
- Florida Building Code Approved (2569)
Documentation
Safety Data Sheets
