TSBIB & TSBEB Whirlybird
Product Line: TopShield®
Product Description: The TopShield® Whirlybird® offer all of the essentials for energy savings and are geared toward going green. Wind turbines are available in two sizes - 12 inch and 14 inch.
Color: Black
Product Description
Specifications
Documentation
Related Products
Product Description

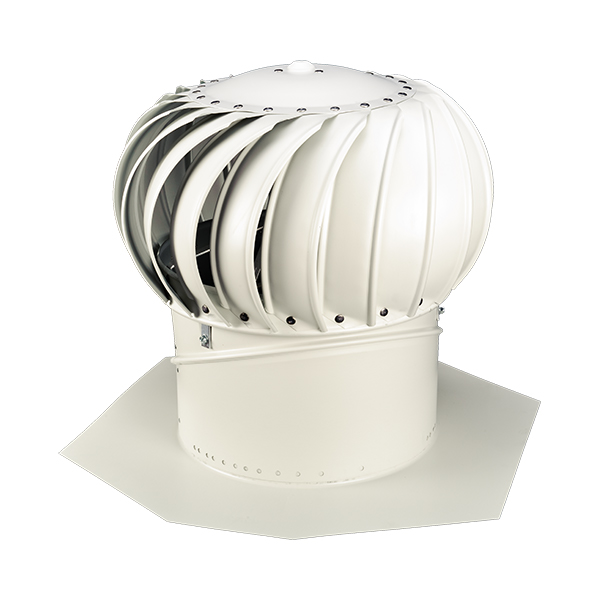

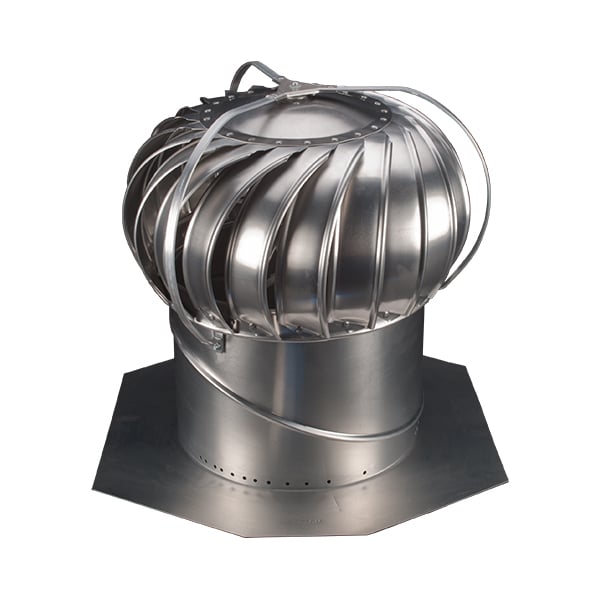

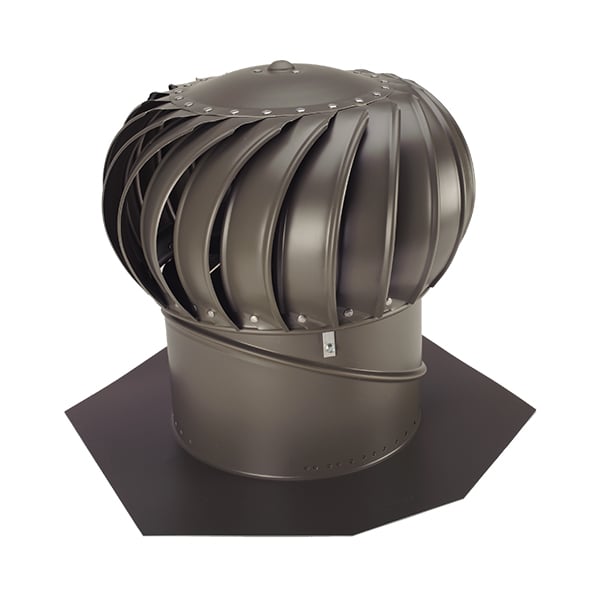

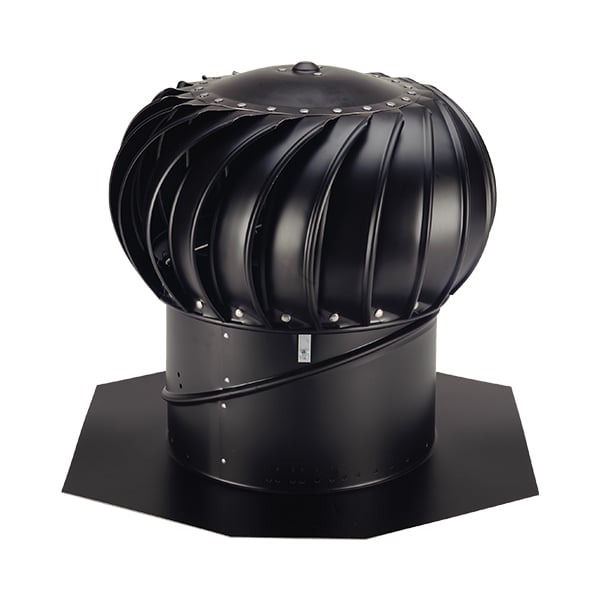

TopShield® is the home of the one and only Whirlybird® Turbine Ventilator, the All Weather Turbine Vent. Whirlybird® turbines offer all of the essentials for energy savings and are geared toward going green. Wind turbines are available in two sizes— 12", and 14". The 14" Big Whirly turbine moves 37% more air than the 12". The 12" turbine is available in an aluminum finish.

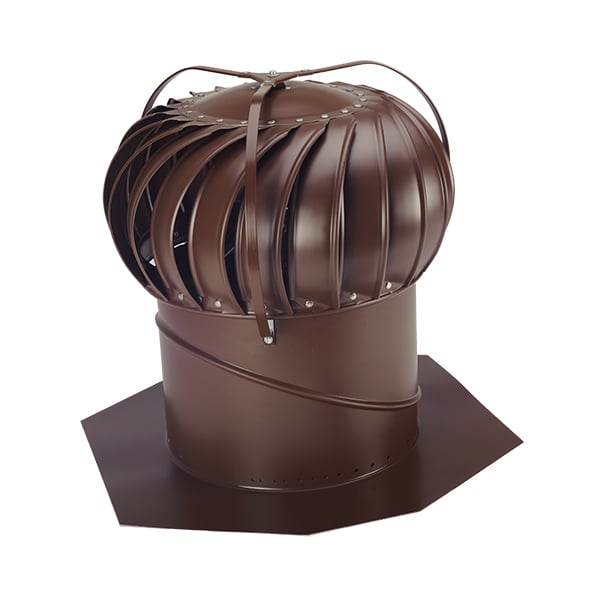

TopShield® Whirlybird® turbines are also available in two models— internally or externally braced. While the internally and externally braced turbines both have the same internal construction, the externally braced turbines have three braces that surround the outside of the turbine.
Benefits & Features
- Reduces energy bills
- Easy installation
- Forever Guarantee - residential use only
- Permanently lubricated upper and lower ball bearings that ensure long life and no maintenance
- All-aluminum rust-free construction
- Rigid spider-type structure
- Riveted at every connection
- 21 air-foil curved vanes with rolled edges to deflect water
- Exclusive variable pitch base adjusts to 12/12 roof pitch
- Large flashing for easy installation
- Tested to withstand winds of 110 m.p.h.
- Reduces winter ice build up
- Big Whirly - 14" moves up to 37% more air than the 12"
Available In
- Black, Mill, White, Brown, Weather, & Bronze
Specifications
| Product: | Item Code: |
| TSBIB-12 Mill | TOPTSBIB12 |
| TSBIB-12 White | TOPTSBIB12W |
| TSBIB-12 Black | TOPTSBIB12B |
| TSBIB-12 Brown | TOPTSBIB12BR |
| TSBIB-12 Weathered Bronze | TOPTSBIB12WB |
| TSBIB-14 Mill | TOPTSBIB14 |
| TSBIB-14 White | TOPTSBIB14W |
| TSBIB-14 Black | TOPTSBIB14B |
| TSBIB-14 Brown | TOPTSBIB14BR |
| TSBIB-14 Weathered Bronze | TOPTSBIB14WB |
| TSBEB-12 Mill | TOPTSBEB12 |
| TSBEB-12 White | TOPTSBEB12W |
| TSBEB-12 Black | TOPTSBEB12B |
| TSBEB-12 Brown | TOPTSBEB12BR |
| TSBEB-12 Weathered Bronze | TOPTSBEB12WB |
| TSBEB-14 Mill | TOPTSBEB14 |
| TSBEB-14 White | TOPTSBEB14W |
| TSBEB-14 Black | TOPTSBEB14B |
| TSBEB-14 Brown | TOPTSBEB14BR |
| TSBEB-14 Weathered Bronze | TOPTSBEB14WB |
Product Specifications
| Model | Hole Size (in.) | Height (in.) | Base (in.) |
| TSBIB-12 | 12 | 17-1/4 | 20 x 20 |
| TSBEB-12 | 12 | 17-5/8 | 20 x 20 |
| TSBIB-14 | 14 | 20 | 22 x 22 |
| TSBEB-14 | 14 | 20-3/8 | 22 x 22 |
Hurricane Caps Available
Applicable Standards & Approvals
- Miami-Dade County Approved
- Texas Department of Insurance “Windstorm” Approved
Documentation
Installation Instructions
Brochures
