TSLOR9-4 Lo-OmniRidge Fire Rated
Product Line: TopShield®
Product Description: The TopShield® Lo-OmniRidge® Low profile ridge vent with Class A Fire Rating installs with hammer or nail gun.
Descripción del producto
Especificaciones
Documentación
Descripción del producto

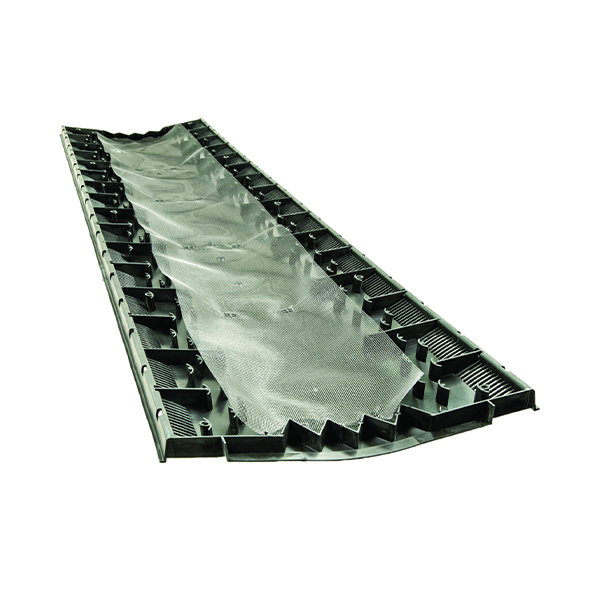

TopShield's Lo-OmniRidge® Low profile ridge vent with Class A Fire Rating installs with hammer or nail gun.
Benefits & Features
- Class A Fire Rating
- Sonic welded fiberglass screen provides enhanced weather protection
- Includes 2-1/2" ring shank nails, 30 nails per piece
- Pneumatic nail gun or hammer installed
- Four drain holes per side per foot
- 11 square inches of Net Free Area per linear foot
- External venturi baffle
- Nail holes marked every 6 inches - supported every foot
- Preformed to 3/12 pitch
- Fits roof pitches 2/12 to 16/12
- Molded nail lines
- Molded centerline for fast and easy alignment
- Alignment tabs
- External water shield
- Slot width guide lines
- Patented molded-in fanfolded end plug fits all roof pitches
- Lifetime Limited Warranty
Especificaciones
| Product: | Item Code: |
| TSLOR9-4 Class A Fire | TOPTSLOR94FR |
Product Specifications
| Model | Length (ft.) | Roof Pitch | NFA (in.²) | Packaged |
| TSLOR9-4FR | 4 | 2/12 to 16/12 | 44 | 10 per Box |
Applicable Standards & Approvals
- UL Listed (Class A)
